As the Balance of Plant (BoP) contractor, Enerven is proud to deliver the critical electrical works for the Bungama BESS. Located just out of Port Pirie, this innovative project is set to deliver 150MW/300MWh of energy storage capacity, enhancing grid stability and supporting the integration of renewable energy into South Australia’s power network.
The customer
Revera is a leading global power developer operating in the most attractive markets globally, delivering renewables, battery storage, green hydrogen and power-led AI data centres at scale.
The Bungama BESS Stage 1 is part of Revera’s multi-gigawatt portfolio of renewable energy projects in South Australia and represents another step forward in addressing the challenges of Australia’s energy transition.
The opportunity
A huge solar and battery project near the city of Port Pirie will be built in time to help the state of South Australia reach its landmark target of 100 per cent “net” renewables by the end of 2027.
Stage 1 of the project, which comprises a 150 MW, 300 MWh battery, began construction in October last year. Stage 2 will be a further 100 MW, 200 MWh of battery and stage 3 a 280 MW solar farm, if operating now, the development would be the largest in the state.
Revera has contracted global technology group, Wärtsilä, to supply the BESS and provide a long-term service agreement. Enerven has been contracted as the (BoP) contractor and maintenance provider. ElectraNet and Revera have executed a Transmission Connection Agreement to connect Bungama BESS to the National Energy Market (NEM) for ElectraNet to construct 275kV connection.

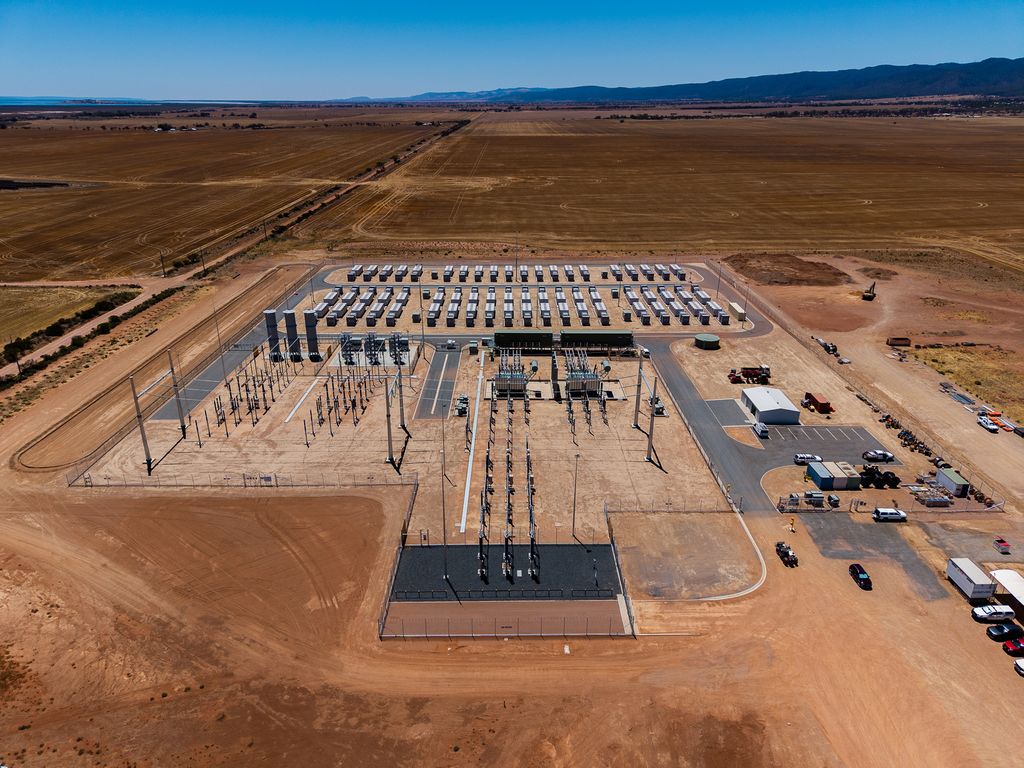

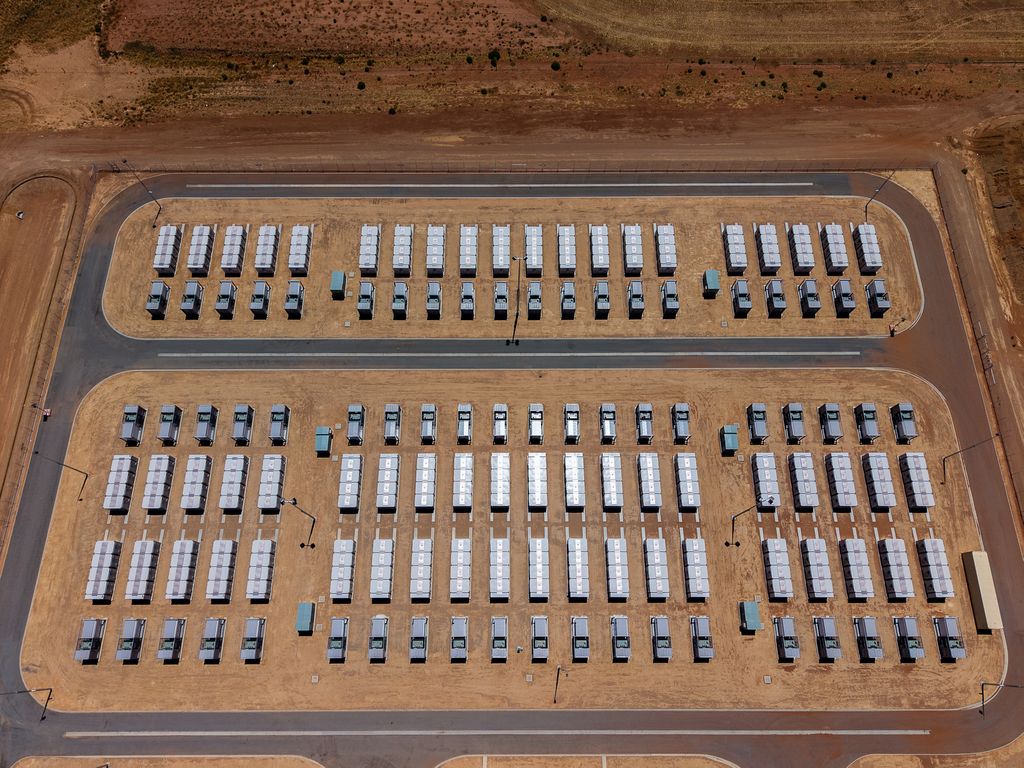

Stage one due for completion in early 2026 includes the BESS system comprising 60 SMA MVPS, 240 Wärtsilä Quantum’s, a 275/33kV substation, 275kV Harmonic filter and shunt reactor.

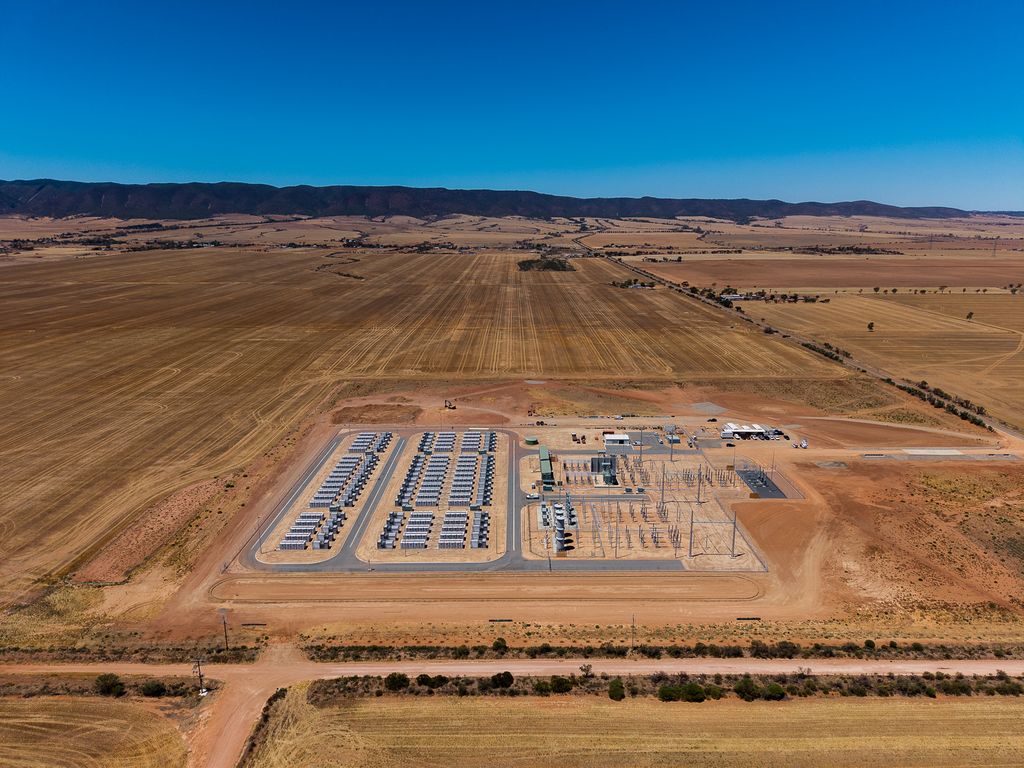

The Bungama BESS facility is located on farmland adjacent to Locks Road, Bungama approximately 2.5 hours north of Adelaide, South Australia. The BESS and solar farm site are bound by Augusta Highway to the south and west and Gulf View Road to the north. The site transformed farmland and greenfield areas.
The new BESS substation (Bungama East) will be connected via a 275kV cable to the Electranet’s Bungama substation situated west of the site at the intersection of Pirie Blocks Road and Warnertown Road, Bungama Substation.
The BESS project has a primary purpose of delivering safe and reliable energy storage in South Australia.
The solution
Key specifications delivered by Enerven:
- Stage 1: (Current stage) A 150 MW/300 MWh two-hour duration battery, a 275/33kV substation, 275kV Harmonic filter and shunt reactor. Expected online early 2026.
- Stage 2: (Future stage) A 100 MW/200 MWh two-hour duration grid-forming battery
- Stage 3: (Future stage) A 280 MW solar farm.
Design and construct Stage 1 comprising
150 MW/300 MWh two-hour duration battery,
275/33kV substation
275kV Harmonic filter and shunt reactor
(taking into consideration “future stages”)
Works include:
All civil works associated with the facility, up to the interface points
- 275kV Substation including Circuit Breakers, Disconnectors, Earth Switches, Surge Arrestors, CTs, VTs
- 33/275kV Main Step-up Power Transformer and NER/NEX
- 275kV Substation Protection Panels, Comms Panel
- 33kV switchboards including protection/control and communication network
- BoP SCADA system
- All building designs
- Auxiliary temporary and permanent power systems design – BESS and Balance of Plant
- Earthing, lighting, fencing, lightning protection, interlocking and sewerage system
- Security and fire detection systems for the BoP equipment and buildings
